PXI背板

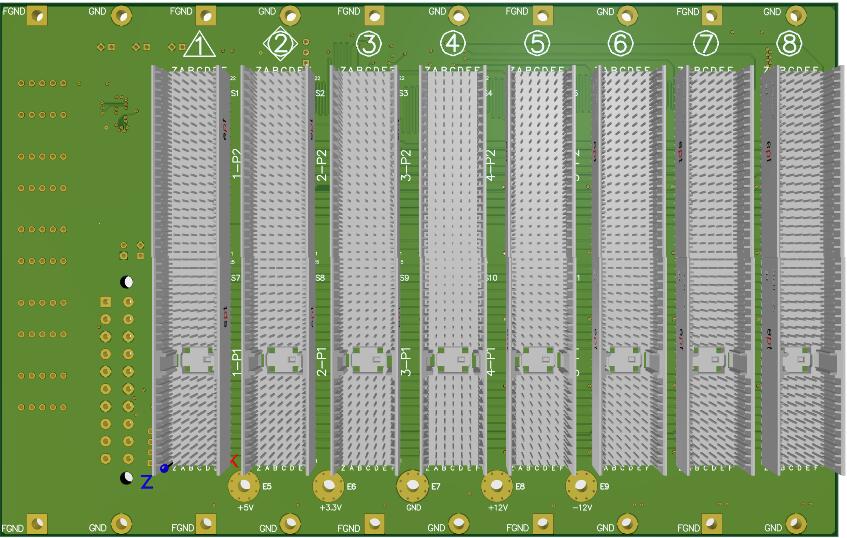

  • 3U8槽PXI背板


    TECHNICAL DATA

    • 8 Slots

    • Mechanical dimension: 202.2×128.7×3.8 (width x height x thickness), support 3U card

    • PCB Type:  10 layer

    • Maximum voltage drop on backplane power:: <20mV

    • V(I/O): +3.3V / +5V selectable

    • Impedance: 65ohm ±10% for CPCI trace; 75ohm ±10 % for PXI local bus trace

    • Operating temperature:-25~ +85

    • Storage temperature: -40~ +85

    • MTBF:700,000h

    3U8槽PXI技术规格书





    3U14槽PXI背板



    TECHNICAL DATA:

    • 14 Slots:1 System slot + 13 Peripheral Slots with bridge

    • All Peripheral slots support 32bit/33Mhz CPCI bus

    • Mechanical dimension: 425.72×128.7×3.8(width *height * thickness), support 3U card

    • PCB Type:10 layer

    • Power connector:Two CPCI Power Receptacle for Redundant PSU

    • Maximum voltage drop on backplane power: <20mV

    • V(I/O): +3.3V / +5V selectable

    • Impedance:65ohm ±10% for CPCI trace; 75ohm ±10 % for PXI local bus trace

    • Operating temperature: -25~ +85

    • Storage temperature:-40~ +85

    • MTBF: 700,000h


    3U14槽PXI技术规格书
